- Good
- Adequate
- Marginal
- Weak
- Poor
Frontal Impact
Lateral Impact
Rear Impact
Comment

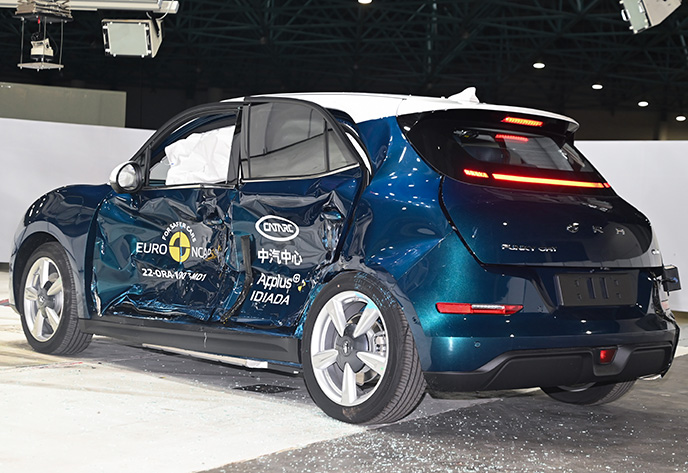

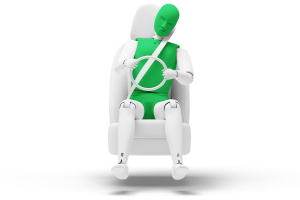

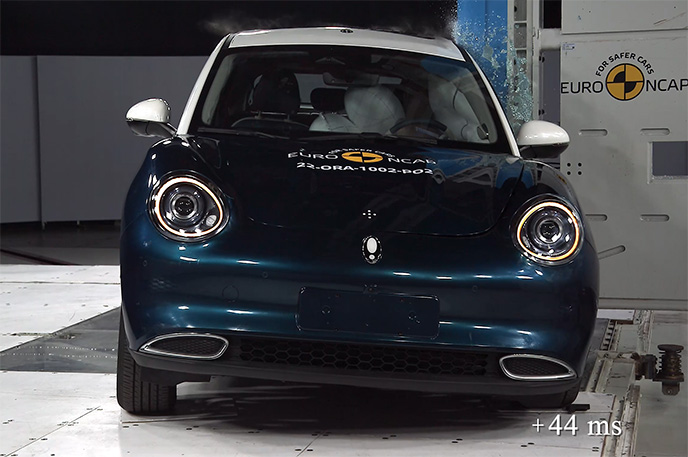

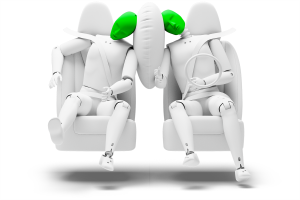

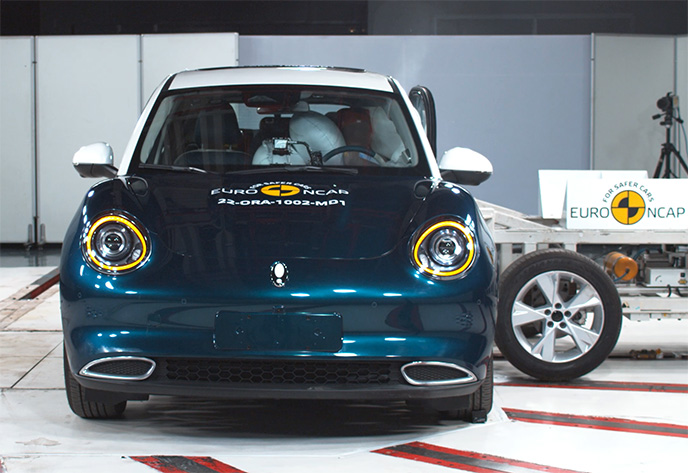

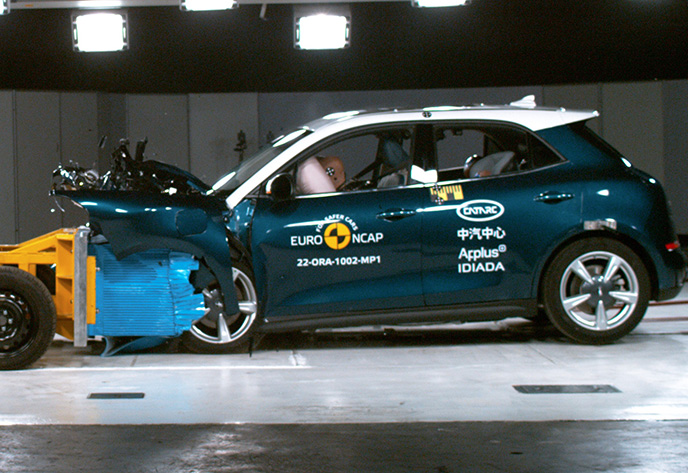

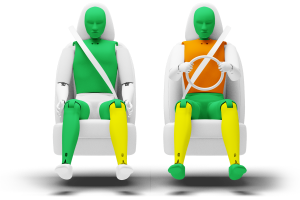

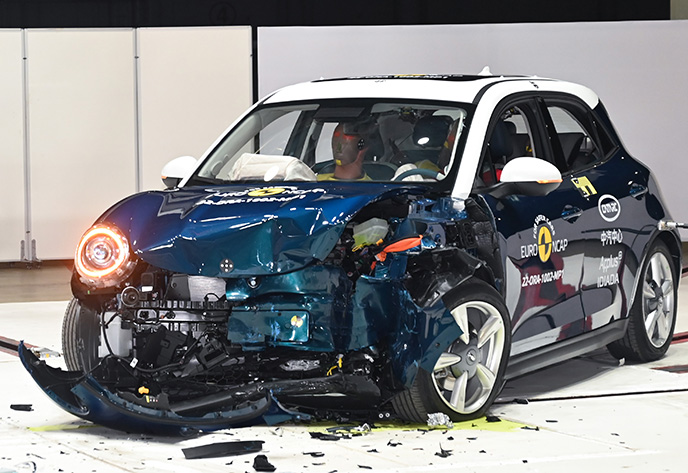

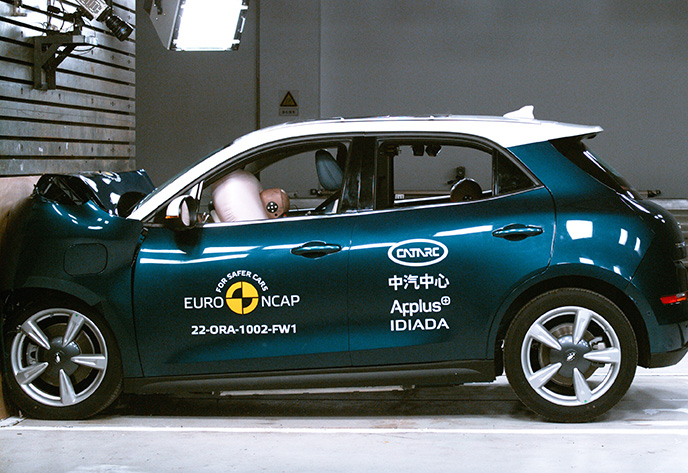

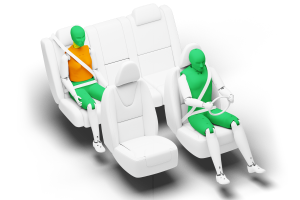

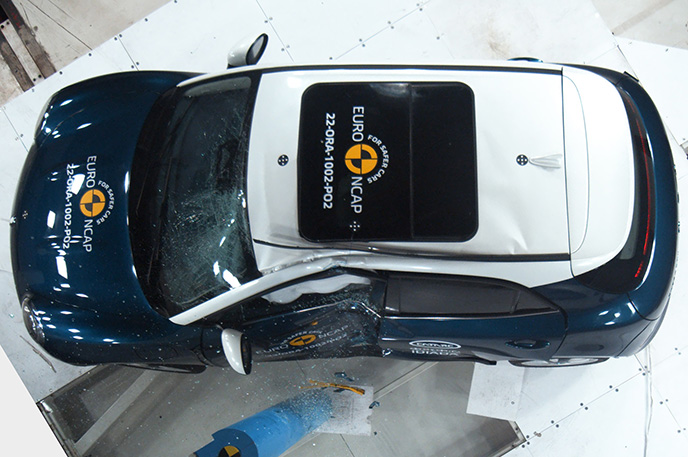

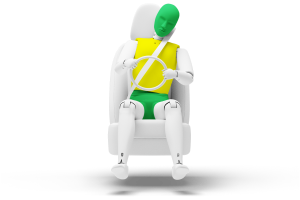

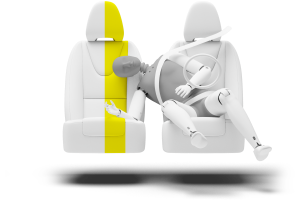

The passenger compartment of the Funky Cat remained stable in the frontal offset test. Dummy numbers demonstrated good protection of the knees and femurs of both the driver and passenger. ORA showed that a similar level of protection would be provided to occupants of different sizes and to those sitting in different positions. Protection of the driver’s chest was rated as marginal, based on dummy readings of compression. Analysis of the deceleration of the impact trolley during the test, and analysis of the deformable barrier after the test, revealed that the Funky Cat would be a benign impact partner in a frontal collision. In the full-width rigid barrier test, protection of all critical body areas was good or adequate, apart from the chest of the rear passenger, protection of which was rated as marginal on the basis of dummy readings of compression. In the side barrier test, protection of all critical body areas was good and the car scored maximum points. In the more severe side pole impact, protection of all critical body areas was good or adequate. Control of excursion (the extent to which a body is thrown to the other side of the vehicle when it is hit from the far side) was found to be adequate. The Funky Cat has a counter-measure to mitigate against occupant to occupant injuries in such impacts and this performed well in Euro NCAP's test. Tests on the front seats and head restraints demonstrated good protection against whiplash injuries in the event of a rear-end collision. A geometric analysis of the rear seats also indicated good whiplash protection. The Funky Cat has an advanced eCall system which alerts the emergency services in the event of a crash. The car also has a system which applies the brakes after an impact to avoid secondary collisions.
